Abbass Darwish

MEP design engineer

I design hydronic heating, plumbing and water treatment systems, and model them in Revit MEP. The projects below are complete builds: calculations, equipment selection, and a coordinated 3D model for each.

WhatsApp LinkedIn
Portrait of Abbass Darwish, a man with short dark hair and a beard, in an olive blazer over a white T-shirt, with a city skyline behind him
Based in
Beirut, Lebanon
Education
M.Sc. Mechanical Engineering, Lebanese International University, 2025
Tools
Revit MEP, AutoCAD, HAP, BIM
Languages
English (fluent), Arabic (native)
Looking for
MEP design engineer roles

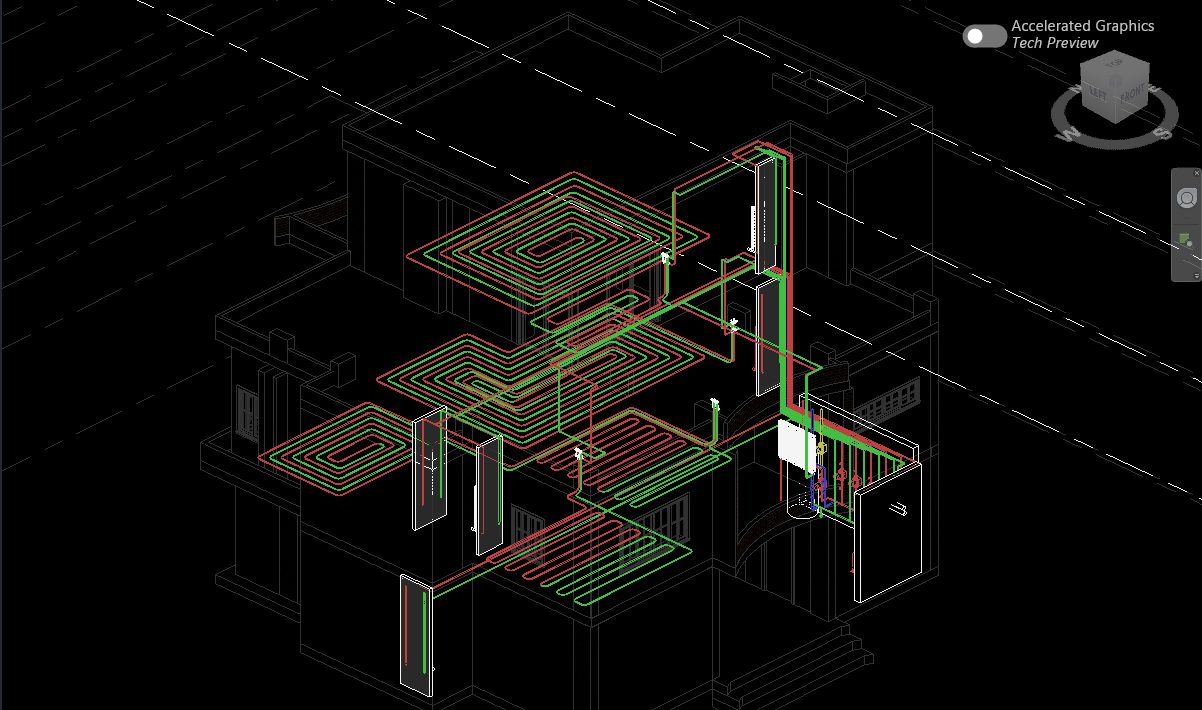

Villa underfloor heating. Loop layout and manifold distribution across all levels.

Projects

Villa underfloor heating

Underfloor heating for a three-story villa. Heat loss was calculated room by room with the U-value method, for 18–22 °C indoors against a 2 °C outdoor design temperature. Loops are zoned onto four manifolds placed per floor, serving single- and dual-room zones, and the full circuit is modeled in Revit.

System
Hydronic underfloor heating
Software
Revit MEP
Scope
Room-by-room heat loss, loop layout, manifold zoning
Design
18–22 °C indoor, 2 °C outdoor
Manifolds
4, single- and dual-room zones
Date
Sep 2026

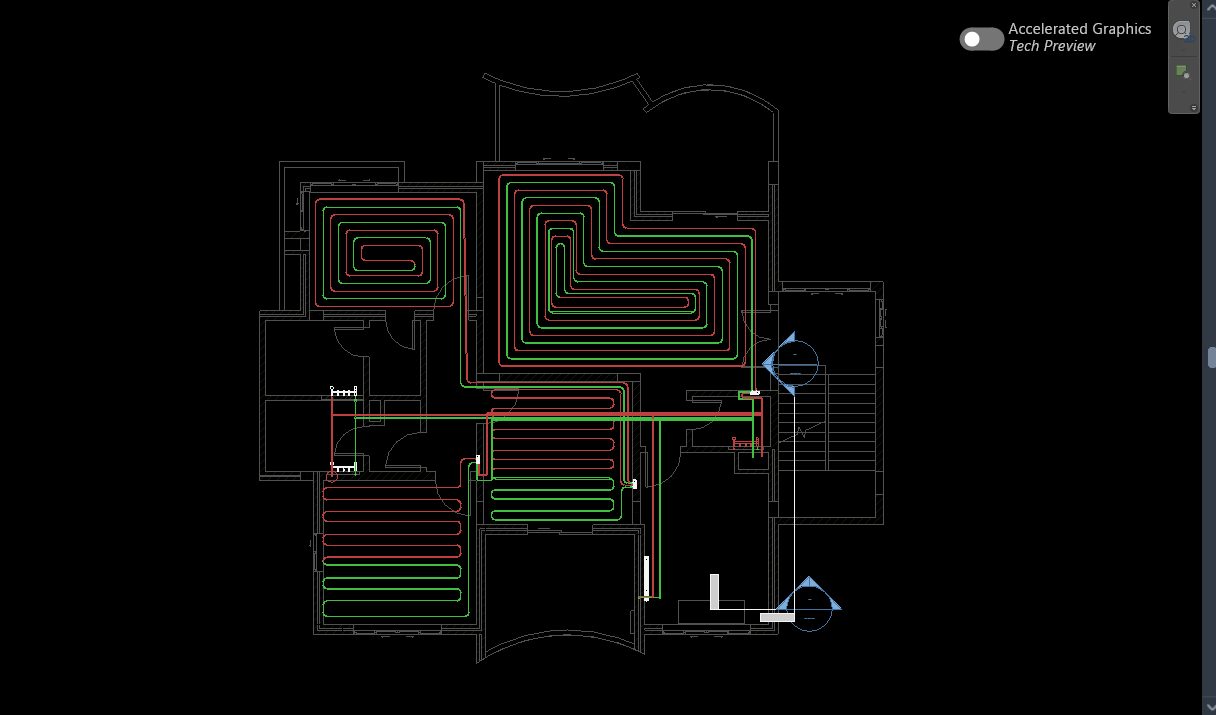

Floor plan. Loop layout per room with manifold locations.

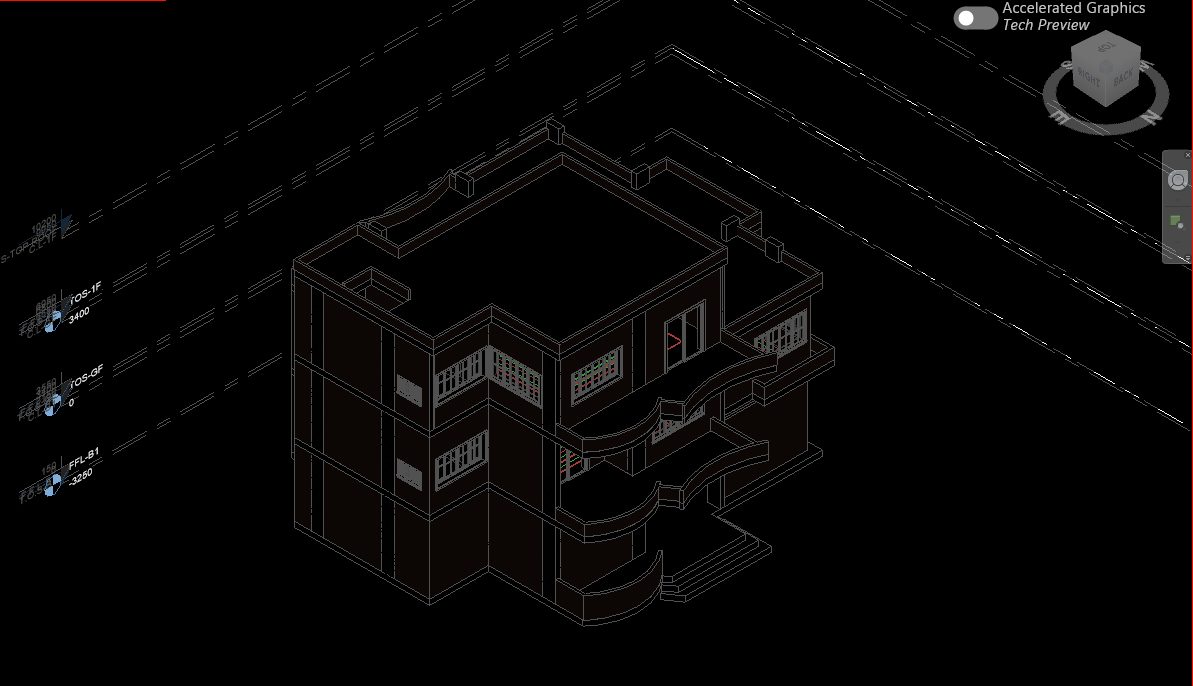

Host building. Basement, ground and first floor.

Boiler room and pump station

The mechanical room for the same villa: a wall-mounted plant with a boiler, buffer and expansion vessel, a domestic hot water calorifier, and six circulator branches feeding the heating circuits. The boiler is sized to the space heating and calorifier demand with a safety margin, and each circulation pump is sized from its loop's flow rate and friction-loss pressure drop.

System
Hydronic heating plant and DHW
Software
Revit MEP
Scope
Boiler and pump sizing, plant layout, boiler and DHW supply and return piping
Date
Sep 2026

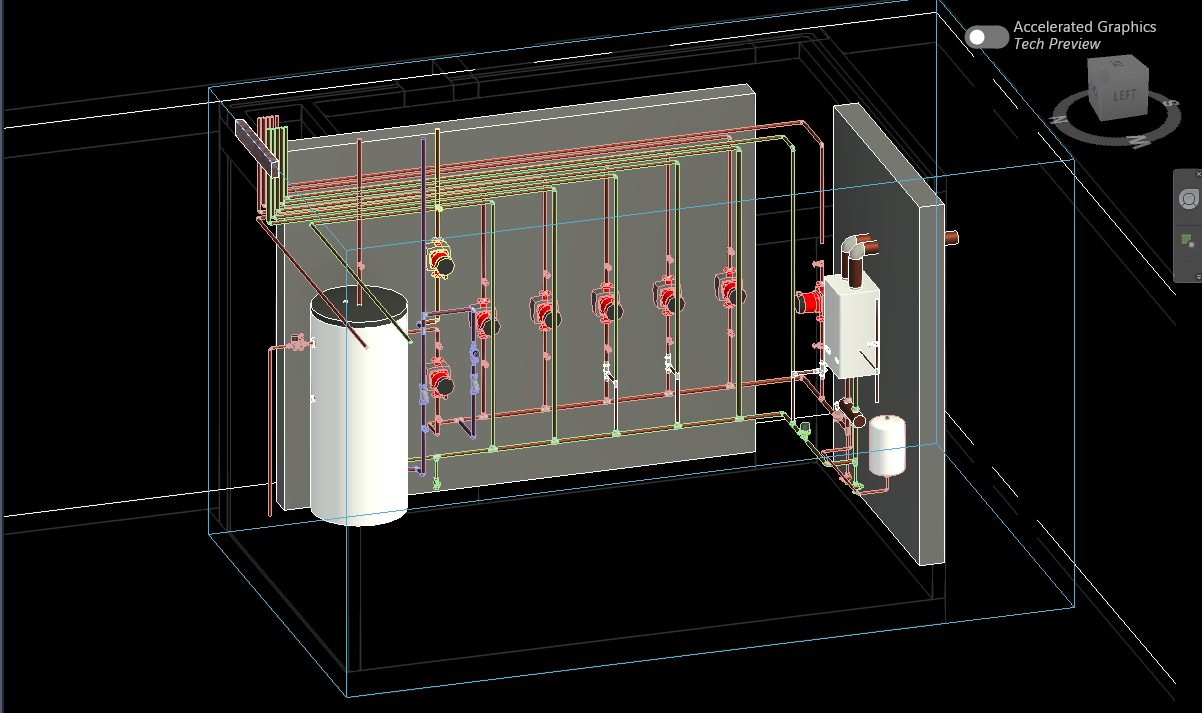

Plant room in the villa. Boiler, cylinder and circulator branches placed within the building.

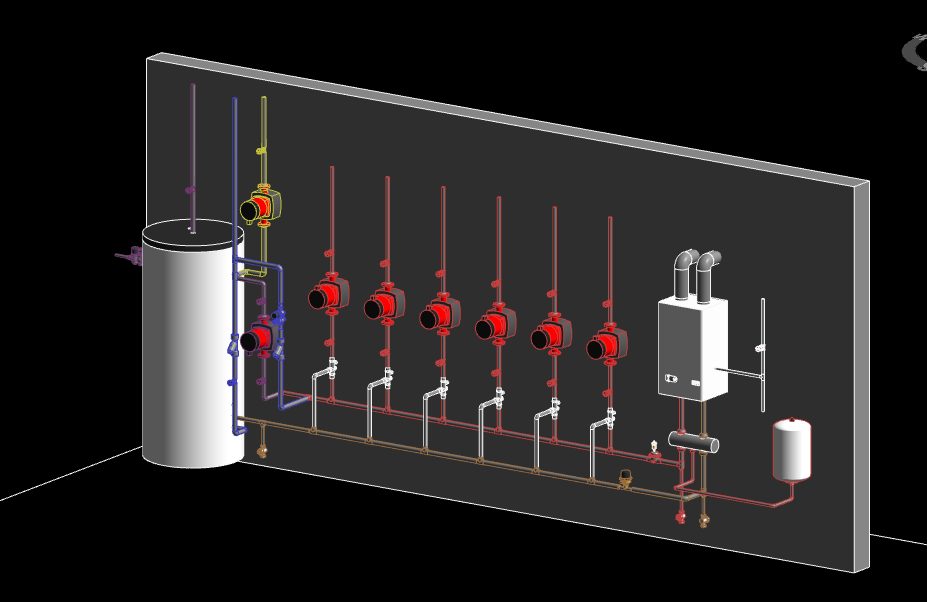

Plant equipment. Isolated view of the boiler, circulators and cylinder.

Reverse osmosis water treatment plant

Water systems for a 32-unit, eight-floor residential building of 128 occupants. Domestic water is sized to UPC fixture-unit demand. An RO plant with three-stage treatment (chlorination, filtration, UV post-treatment) runs a fixed six-hour batch cycle that covers the full daily demand, filling a ground-level buffer tank with rooftop booster distribution. Sizing calculations were built in an Excel workbook.

System
Potable water treatment and distribution
Software
Revit MEP, Excel
Building
32 units, 8 floors, 128 occupants
Treatment
RO, 3 stages, 6-hour batch cycle
Date
Aug 2026

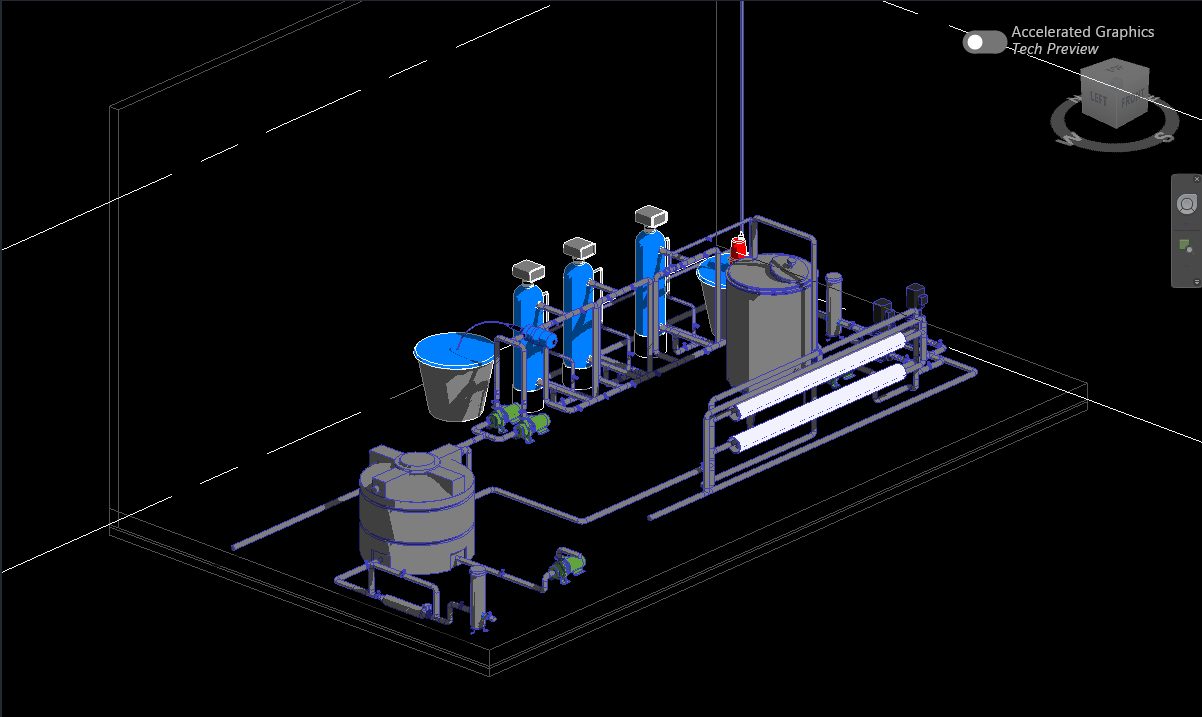

Plant overview. Treatment vessels, tanks, pumps and membranes on the plant slab.

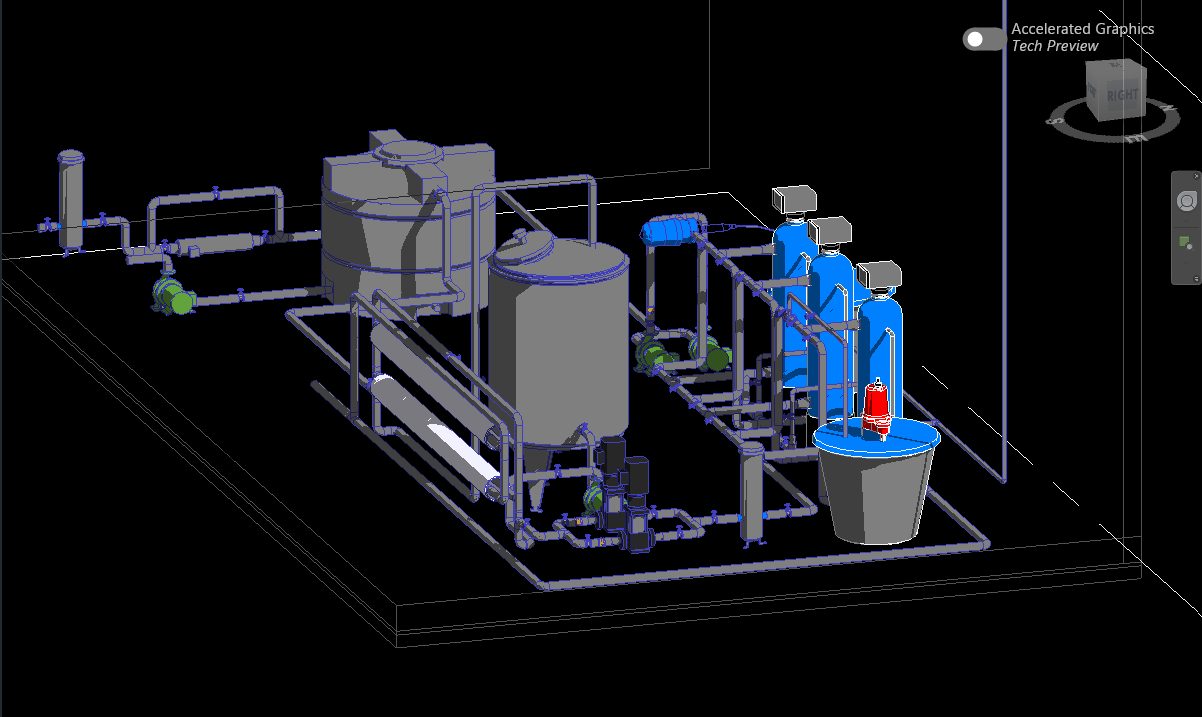

Process side. Second angle on the membranes and pump set.

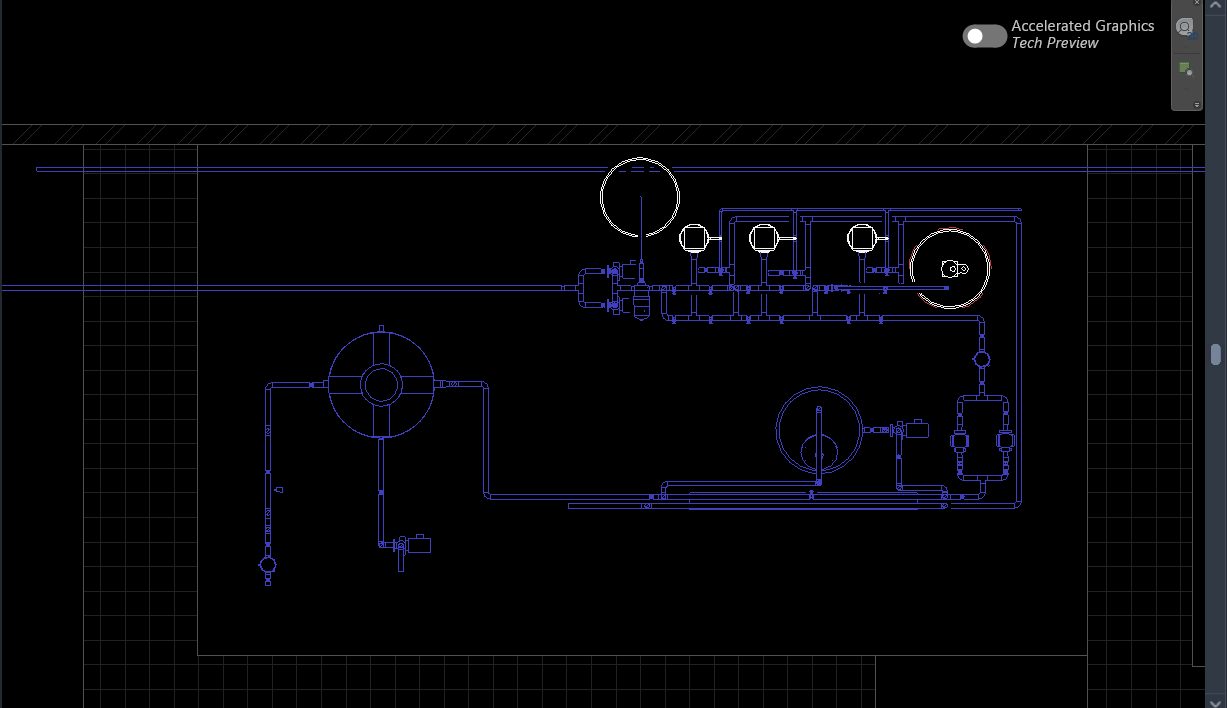

Plan view. Equipment and piping layout.

Sewage and wastewater treatment

For the same 128-occupant building: independent sewage (activated sludge) and wastewater (aeration) treatment trains, both sized to full occupancy. The treatment tank is modeled with its aeration diffuser grid, blower, settling compartment, submersible pump and the chemical dosing and inlet piping around it.

System
Sewage and wastewater treatment
Software
Revit MEP, Excel
Scope
Tank sizing, aeration layout, piping
Sized for
128 occupants, full occupancy
Date
Aug 2026

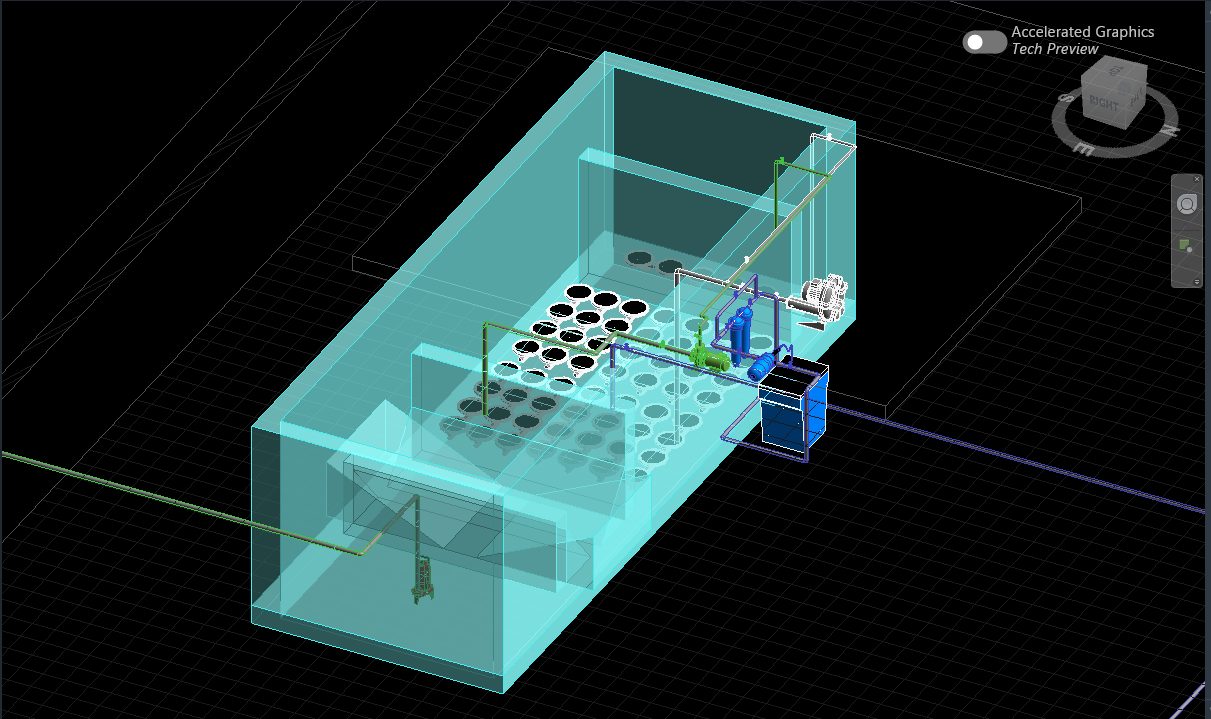

Inside the tank. Diffuser grid, settling compartment and equipment on the tank edge.

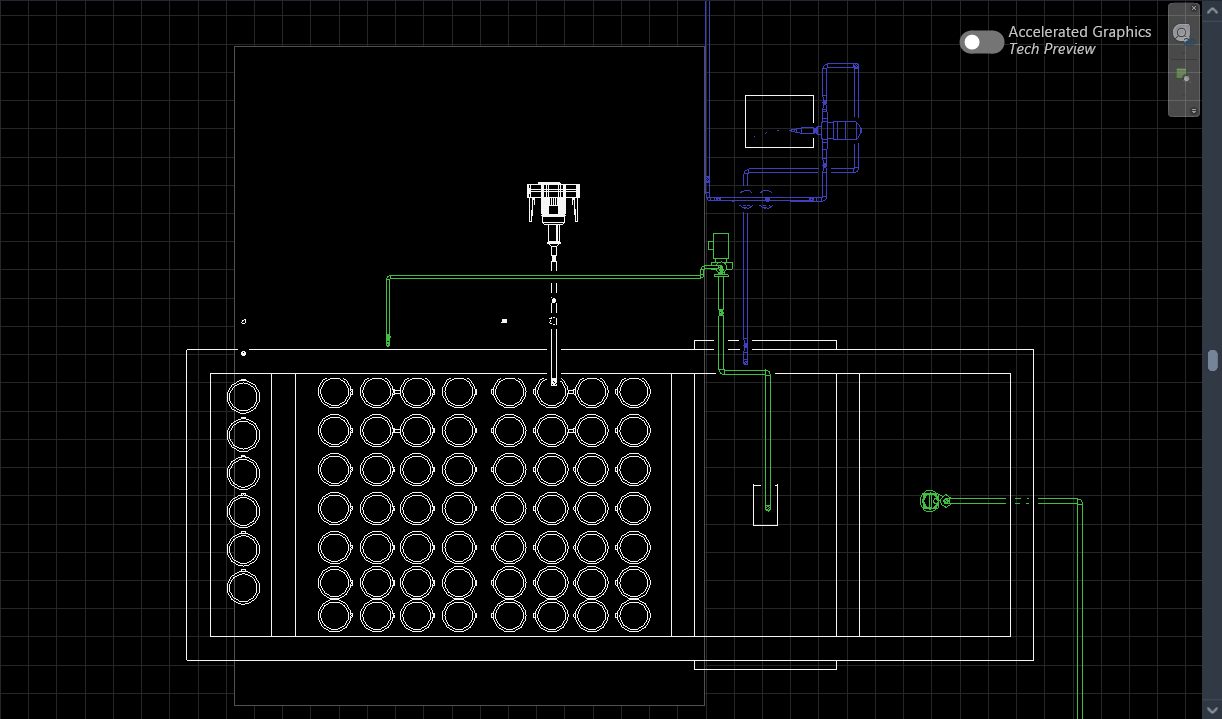

Plan view. Diffuser grid layout.

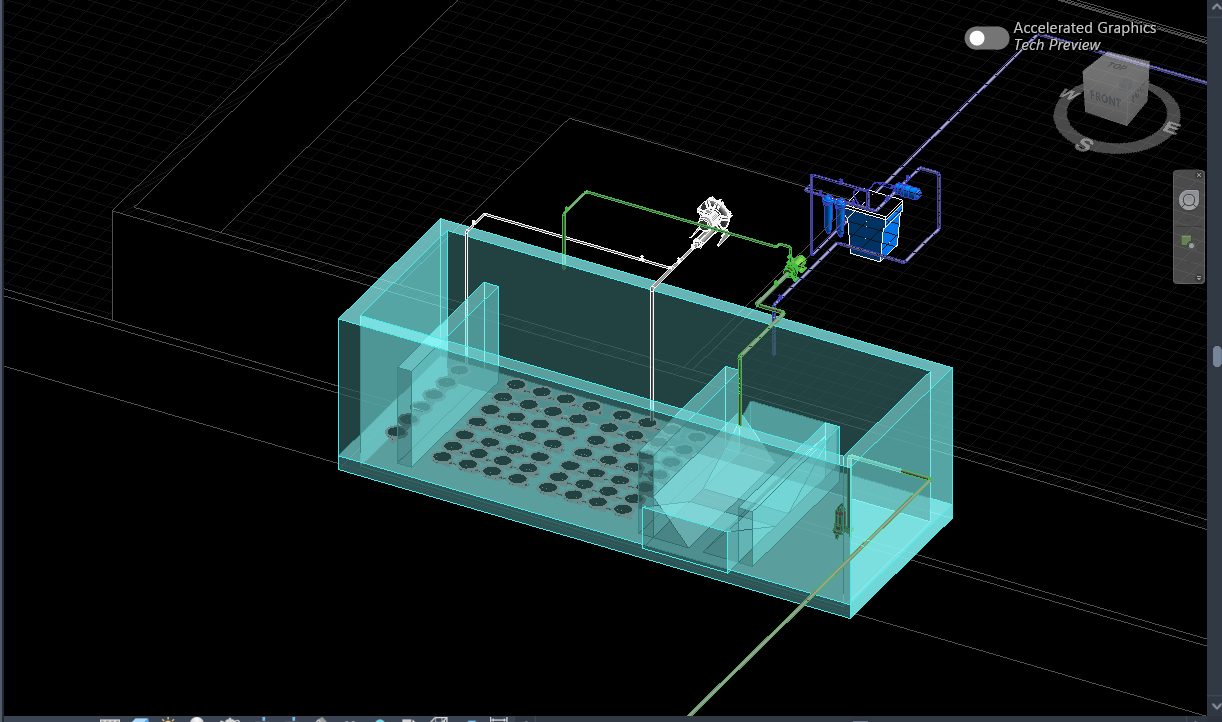

Second angle. Tank, diffusers and pipe routing.
Tank exterior. Concrete walls and baffles.

Villa HVAC and plumbing

Full HVAC and plumbing design for a three-floor, 200 m² villa, modeled in Revit MEP.

System
HVAC and plumbing
Software
Revit MEP
Building
3 floors, 200 m²
Date
2025

Skills

Design

  • HVAC load calculationsHAP and ASHRAE methods
  • HVAC and hydronic heatingRadiator and underfloor systems
  • Plumbing and water systemsWater treatment, wastewater, irrigation, pools
  • Duct and pipe sizing, equipment selection
  • Heat loss calculationU-value method, room by room
  • Manifold zoning and mechanical room sizing

Modeling and site

  • Revit MEP
  • AutoCAD
  • BIM coordinationClash detection
  • Excel design workbooksSizing and schematic tabs
  • Site inspectionCode compliance checks

Training

  • Advanced Water Systems (Revit Plumbing)Autodesk-certified course, Aug 2026, certificate pending
  • Heating Systems Design (Revit)Radiator and underfloor modules, Sep 2026, certificate pending
  • Revit MEP FundamentalsQuest Construction, 2025

Background

Experience

Modern Energy Company (MEC), BeirutHVAC design and field engineering intern, Oct 2023 – Jun 2024

HVAC and plumbing design for a 10-floor mixed-use building: HAP load reports, ductwork and water schematics, plus weekly site inspections on four active projects, including a hospital.

Association of Energy EngineersMechanical engineering intern, Jul – Sep 2023

Villa load analysis using HAP and ASHRAE methods.

MOST GroupEngineering intern, steel fabrication, Jun – Aug 2023

Education

M.Sc. Mechanical EngineeringLebanese International University, June 2025, GPA 3.27

Thesis: FEM topology optimization of a 3D-printed prosthetic leg pylon in ANSYS.

B.Sc. Mechanical EngineeringLebanese International University, June 2023, GPA 3.30

Contact

I am looking for an MEP design engineer role in Lebanon. Message me and I will send drawings, calculations or the full models on request.
